VAL6 from Schuurmans Farm Supply

Call or email for pricing.
Daystar
Heat Output: 51,800 BTU/hr
Fuel: Kerosene, #1 Diesel
Tank Capacity: 2.6 gallons
Fuel Consumption: .4 gallons/hr
Power Source: 120 V, 60 Hz Single Phase
Power Consumption: 120 W
Control System: 5 sec. Prepurge, 180 sec. Postpurge
Safety Device: Photocell flame monitor, 3A Fuse
Burner Type: High Pressure Spray Gun Type
External Dimension: HxWxD 23.4 x 12.2 x 22.8 (in)
Dry Weight: 40 lbs.

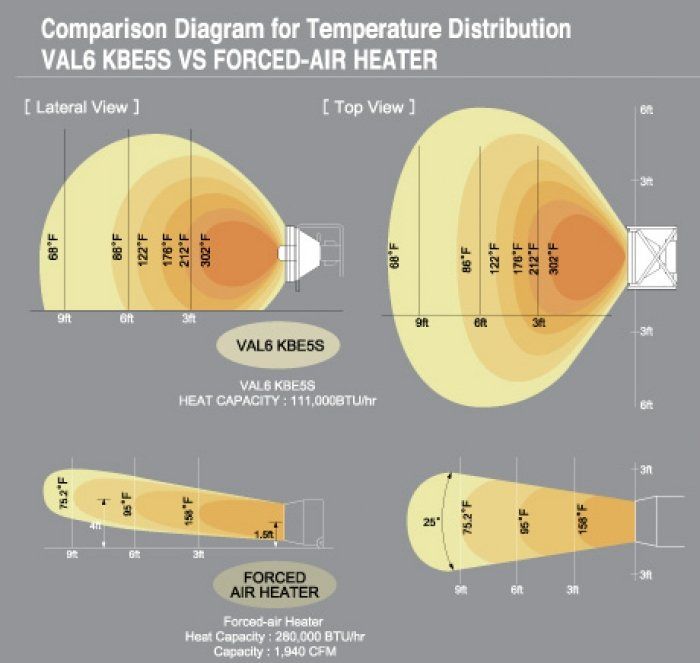

KBE5S
Heat Output: 111,000 BTU/hr
Fuel: Kerosene, #1 Diesel
Tank Capacity: 9 gallons
Fuel Consumption: .85 gallons/hr
Power Source: 120 V, 60 Hz Single Phase
Power Consumption: 100W
Control System: 5 sec. Prepurge, 180 sec. Postpurge
Safety Device: Photocell flame monitor, 3A Fuse
Burner Type: High Pressure Spray Gun Type
External Dimension: HxWxD 36.4 x 27.9 x 27.4 (in)
Dry Weight: 83.8 lbs.
KBE5S (2 step)
Heat Output:
High: 118,000 BTU
Low: 100,000 BTU
Fuel: Kerosene, #1 Diesel
Tank Capacity: 15 gallons
Fuel Consumption:
High: .90 gallons/hr
Low: .75 gallons/hr
Power Source: 120 V, 60 Hz Single Phase
Power Consumption:
In ignition: 150W
In operation: 120W
Safety Device: Photocell Flame Monitor, 3A Fuse
External Dimension: HxWxD 36.3 x 28 x 29.2 (in)
Dry Weight: 92.6 lbs.
EPX
Heat Output:
High: 140,000 BTU
Low: 100,000 BTU
Fuel Kerosene:, #1 Diesel
Tank Capacity 15.4 gallons
Fuel Consumption:
High: 1.02 gallons/hr
Low: .75 gallons/hr
Power Source: 120 V, 60 Hz Single Phase
Power Consumption:
High: 97W
Low: 96W
Safety Device: Photocell Flame Monitor
3A Fuse, Overheat protection
Tip-over switch, Overvoltage detector
External Dimension: HxWxD 38.2 x 25.4 x 48.6 (in)
Dry Weight: 110 lbs.
